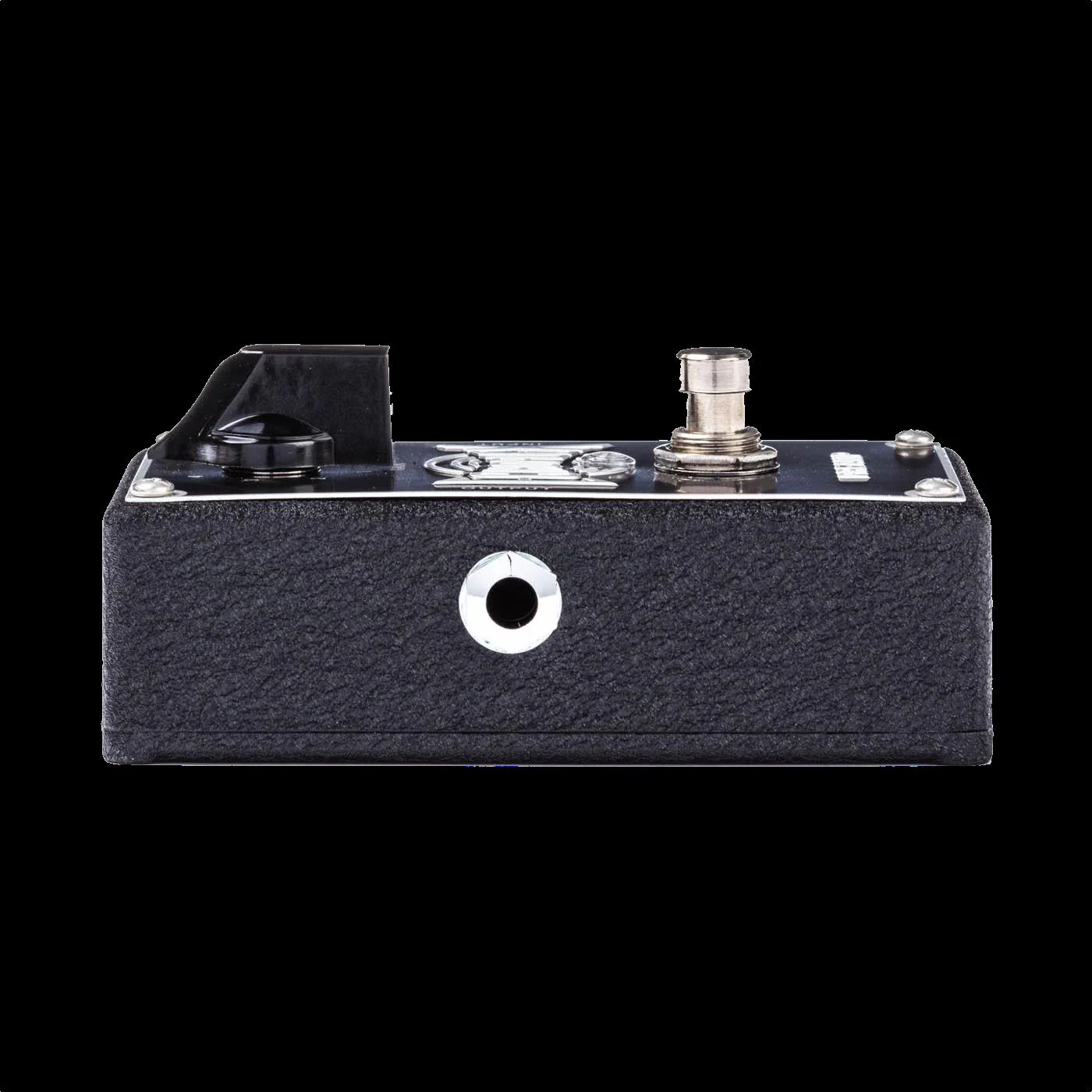

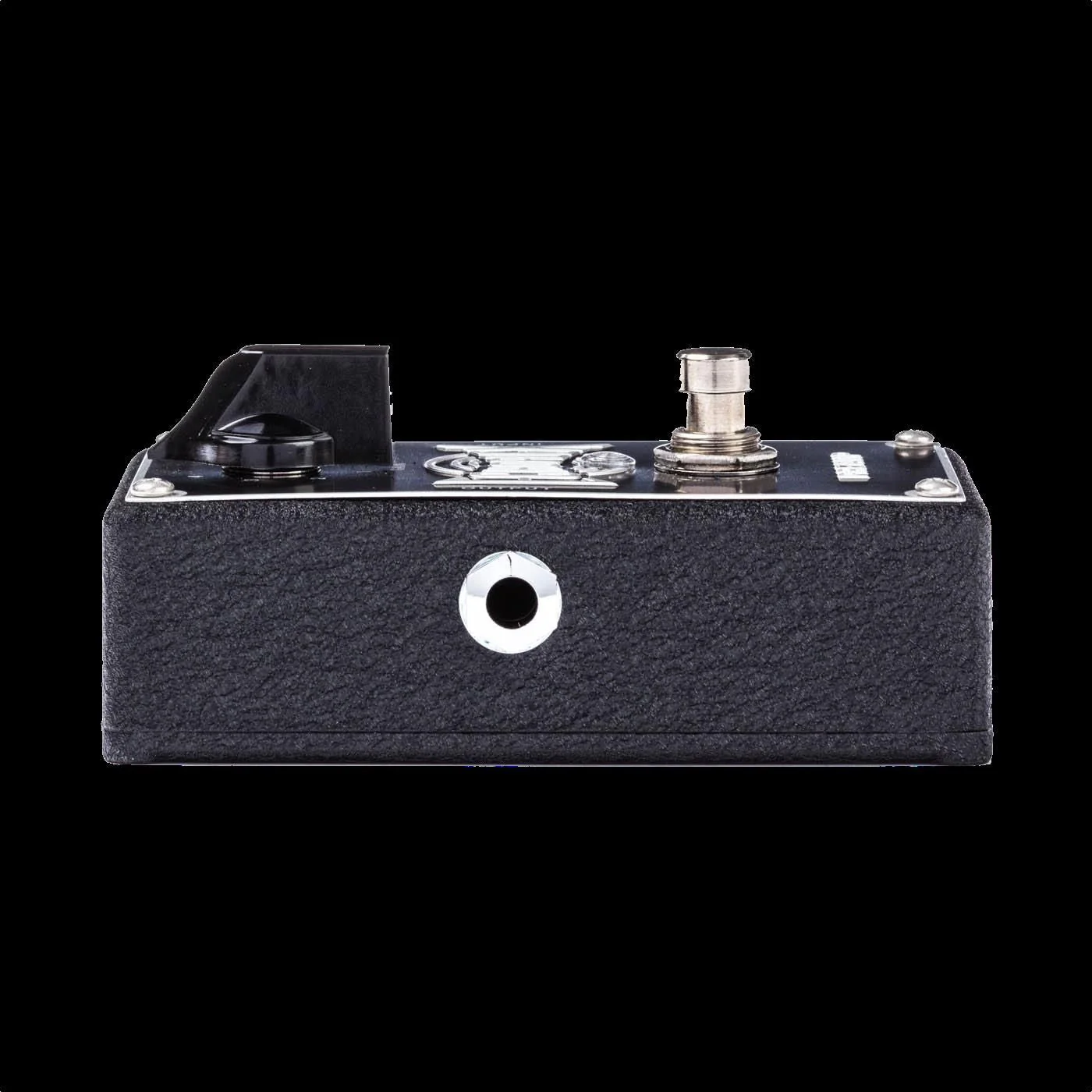

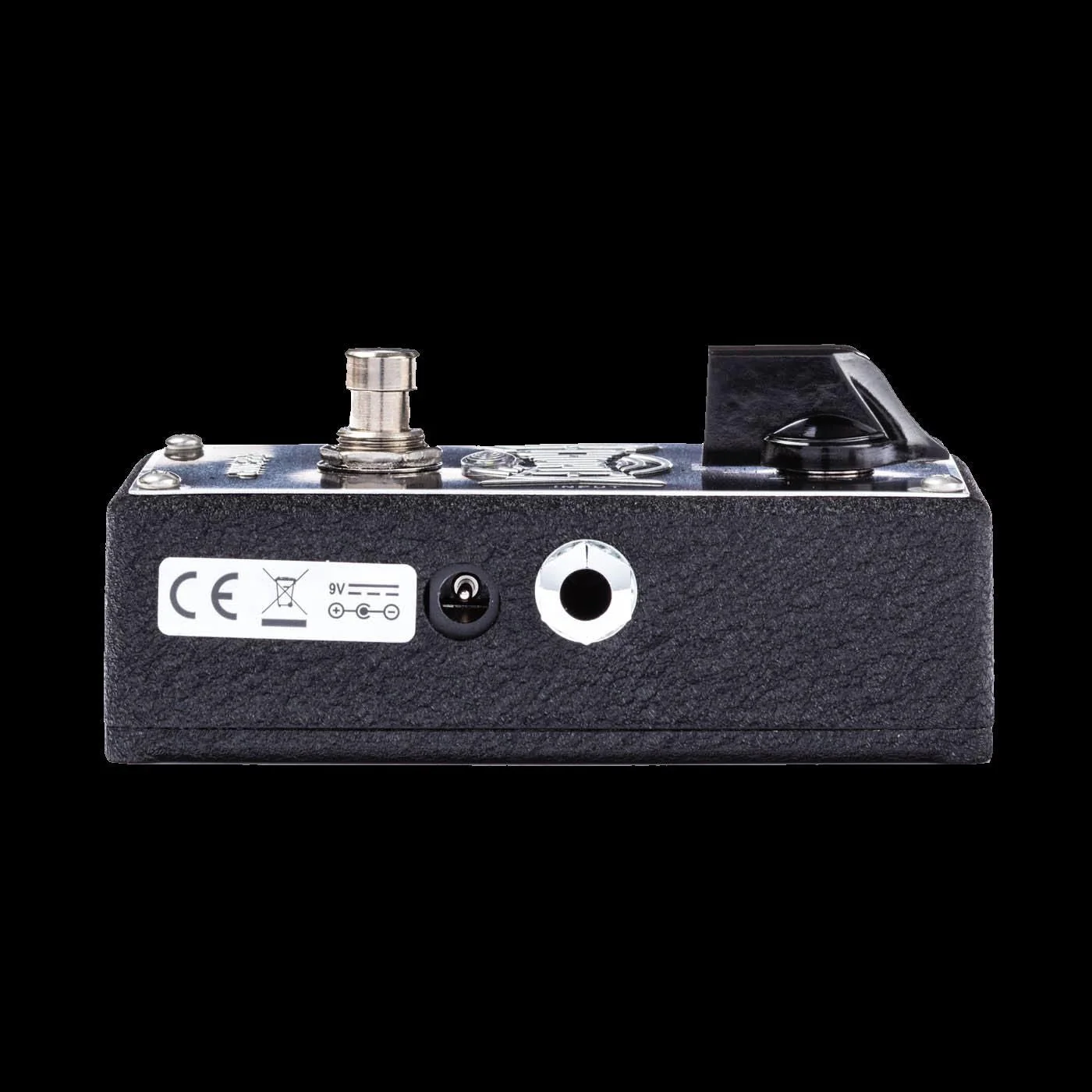

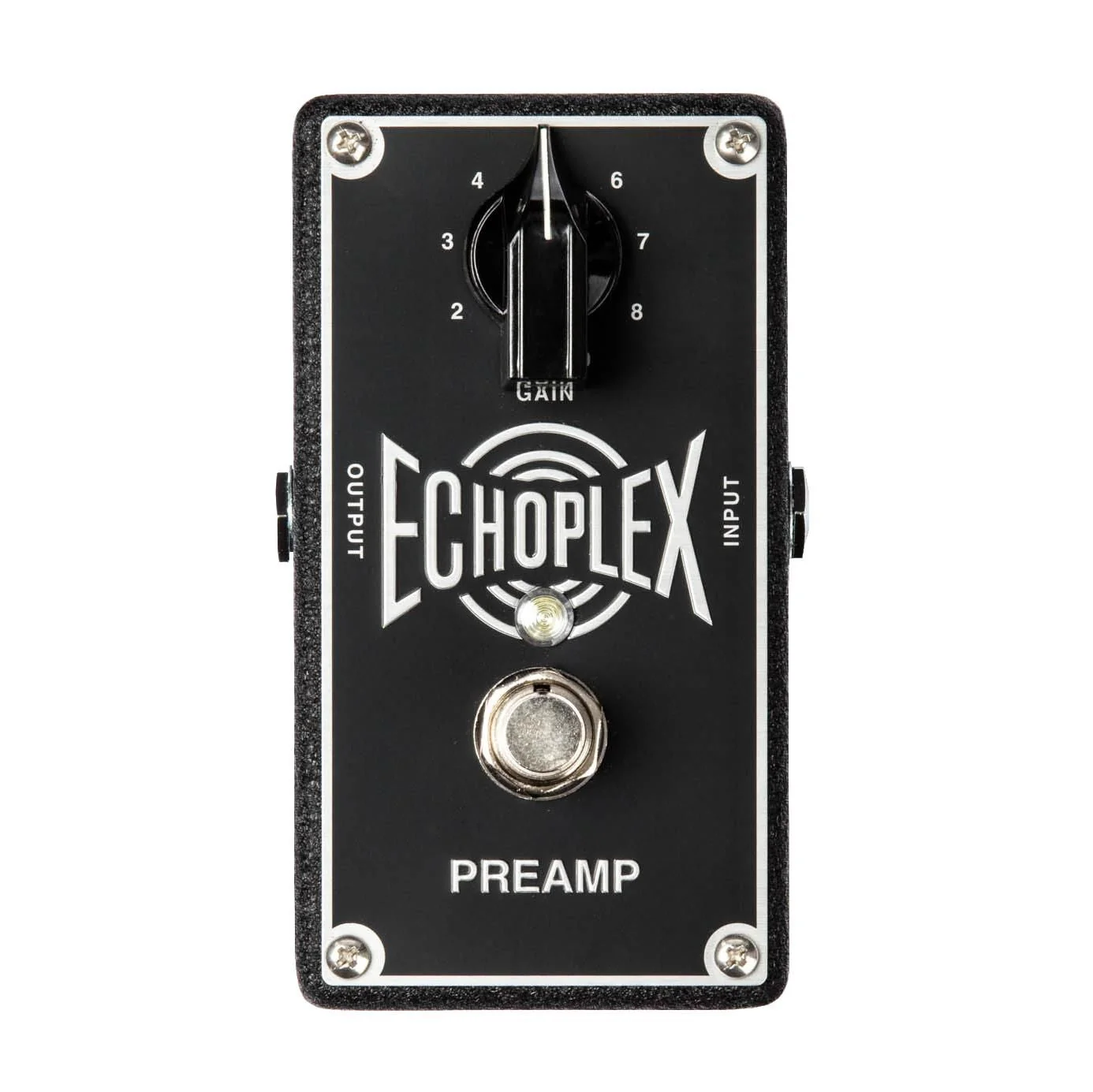

Jim Dunlop EP101 Echoplex Preamp Effects Pedal

---

Specifications

• Input Impedance: 730 kΩ
• Output Impedance*: 55 kΩ
• Max Input Level: -5 dBV
• Max Output Level: +5.5 dBV
• Noise Floor**: -95 dBV
• Max Gain: +11 dBV
• Bypass: True Hardwire
• Current Draw: 12 mA
• Power Supply: 9 volts DC
  *Gain at middle position
  **A-weighted, Gain at maximum clockwise position

---
