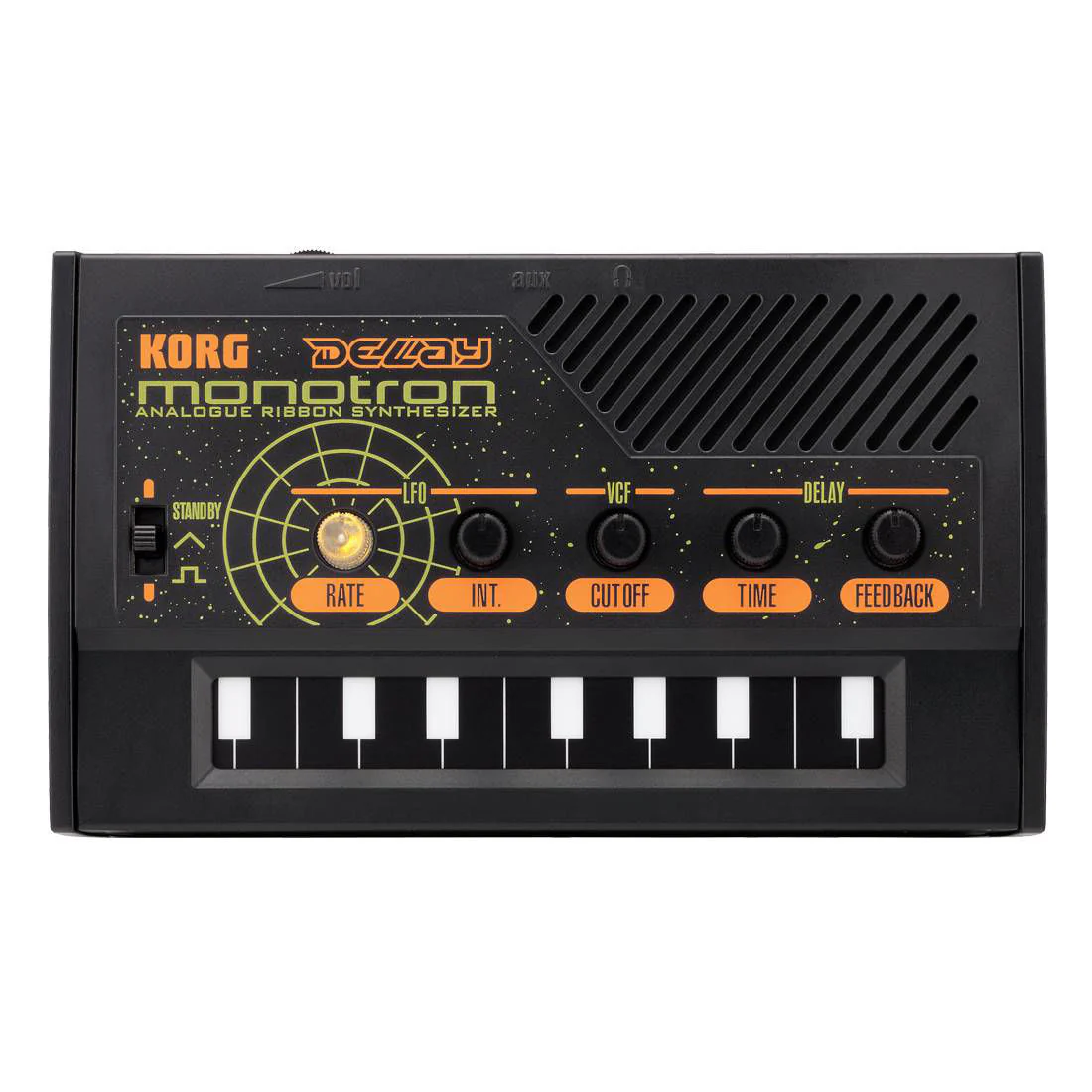

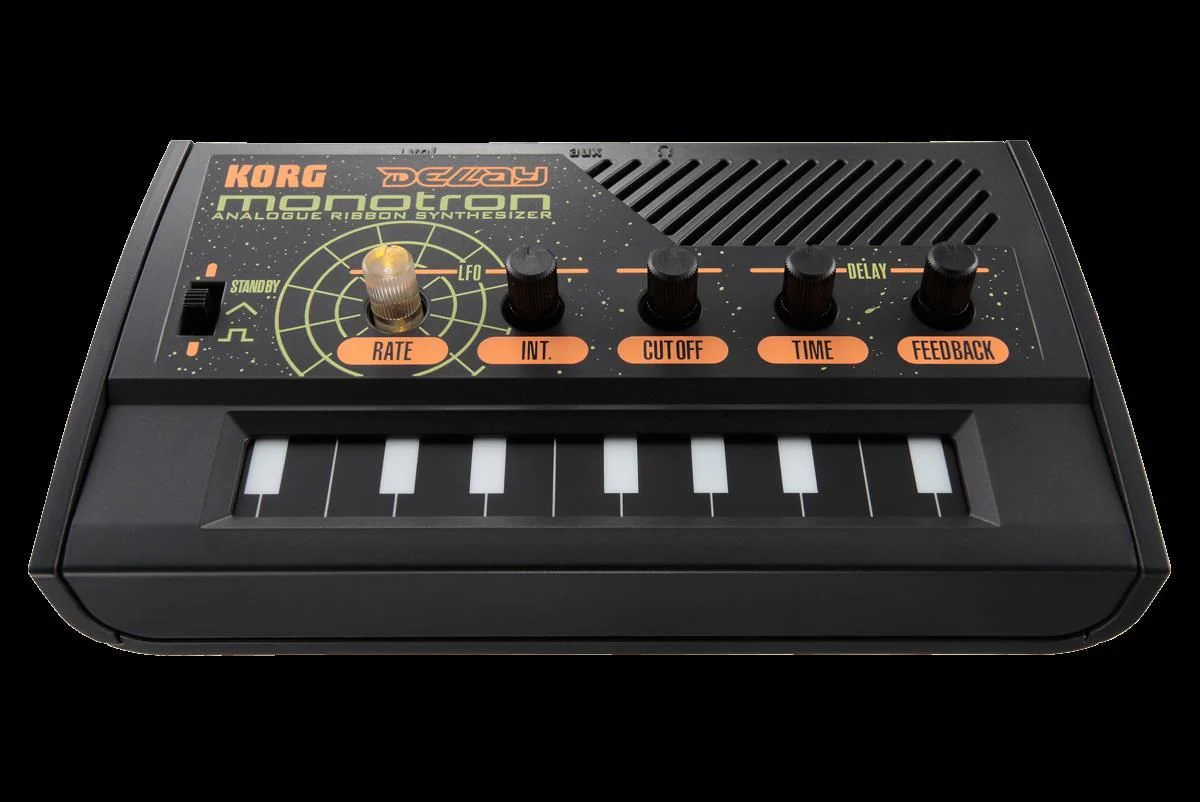

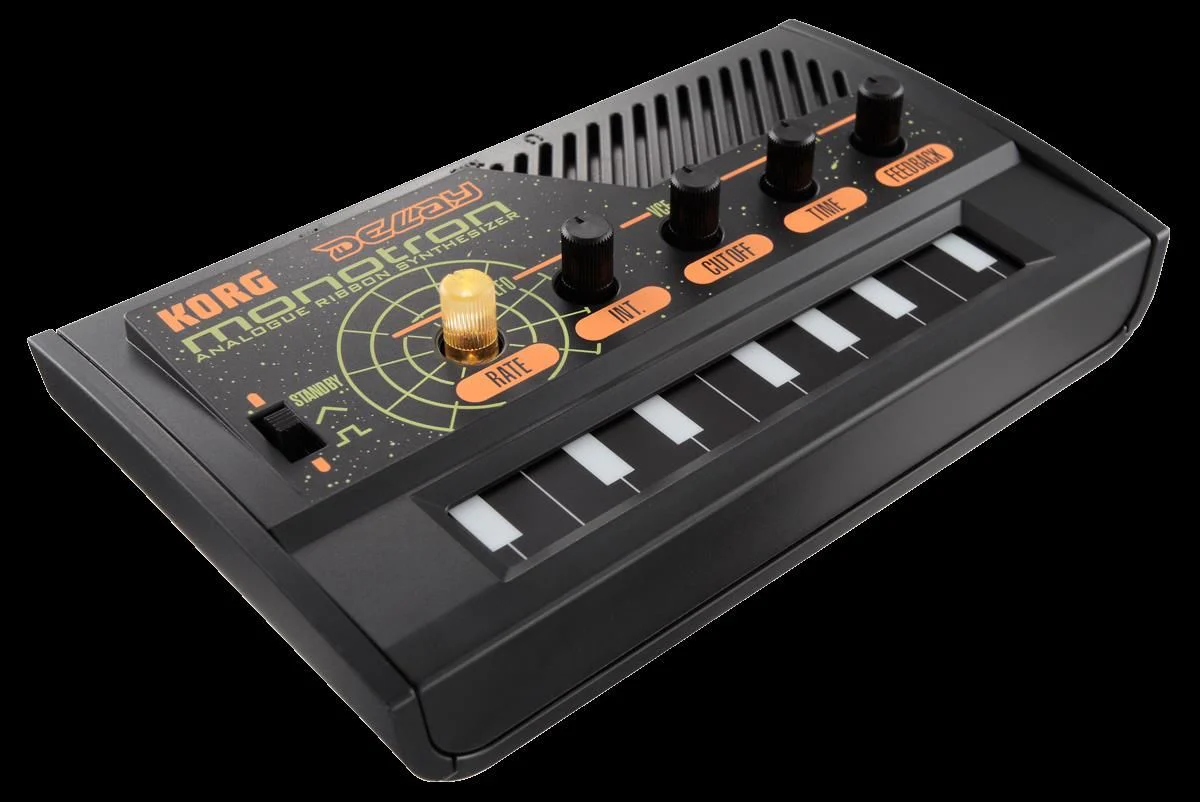

Korg Monotron Delay Analog Ribbon Synthesizer with Delay

Go Anywhere Analog: That was the theme behind the remarkable battery-powered and palm-sized analog synthesizer that Korg dubbed the monotron. Now the powerful and fun-to-play monotron is joined by two new siblings.

Each is played from a ribbon controller keyboard with newly added features. The monotron’s simple operation and ease of use (5 knobs and 1 switch) is alive and well, inviting hours of enjoyment and musical exploration.

---

Features

• Space Delay offers analog-style echoes
• New LFO with selectable triangle or square waveshape
• Wide-range ribbon controller keyboard
• Original Analog (VCF) Filter taken from the classic MS-10 & MS-20
• Aux input jack lets you apply filter/delay to any audio source
• Built-in speaker and battery power for Go Anywhere Analog sound
• Headphone jack for private use

---

Specifications

• Synthesizer structure: 1 VCO, 1 VCF, 1 LFO; DELAY
• Switch: Standby / ∆ / Π
• Knobs: LFO Rate, LFO Int, VCF Cutoff, DELAY Time, DELAY Feedback
• Controller: Ribbon Controller
• Volume: Headphone Volume
• Aux Input: ⅛" Stereo Jack
• Headphone Output: ⅛" Stereo Jack
• Speaker: Miniature Internal; Disabled when headphones are in use
• Power Supply: AAA batteries (x2), recommended alkaline batteries
• Battery Life: Approximately 8 hours (with alkaline batteries)
• Dimensions (W x D x H): 120 mm x 72 mm x 28 mm / 4.72” x 2.83” x 1.10”
• Weight: 95g / 3.35 oz. (without batteries)
• Accessories: AAA batteries x2 (for verifying operation)

---

Watch: In The Studio: Korg Monotron Duo; Monotron Delay
