Line 6 Relay G10 Plug-And-Play Digital Wireless Guitar System

---

Features

• Plug and play design
• No compromise, 24-bit digital sound quality
• Automatic channel set up
• Dock the transmitter to charge battery
• 8-hour battery life
• Sleep mode extends battery life (up to 200 hours)
• No-pop Auto audio mute
• 50-foot range indoors
• Bi-color LED on receiver and transmitter
• Cable tone technology matches the tone of a standard guitar cable

---

Specifications

• Transmission Range: Up to 50 feet line-of-sight (may vary due to local conditions)
• Battery Life: Approx. 8 hours (internal rechargeable battery)
• Frequency Scanning: Yes
• Support For Multiple Transmitters: No
• Support For Multiple Instruments: No
• Transmitter Connectors: 1/4-inch Male unbalanced input plug

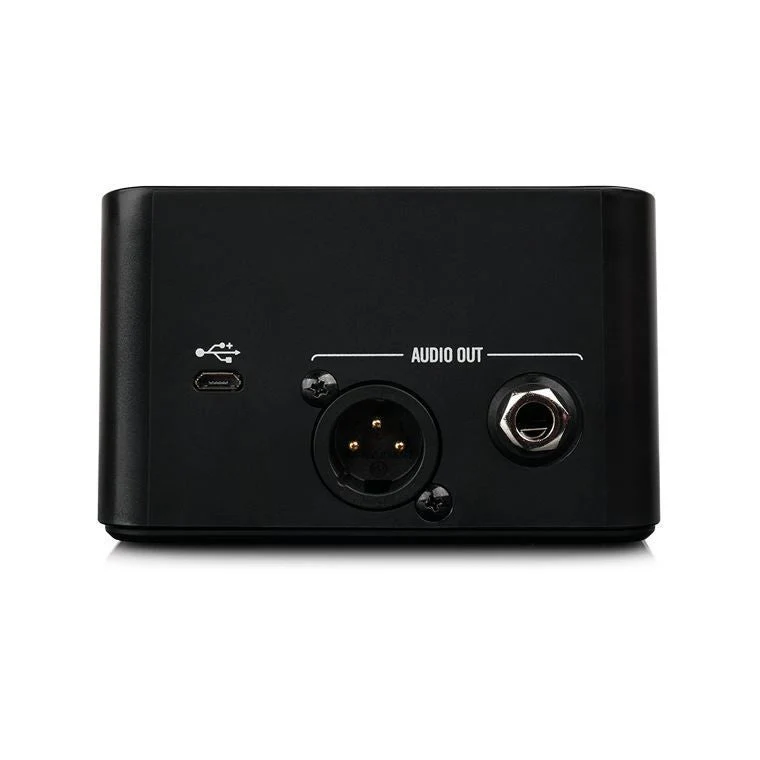

• Receiver Connections: 1/4-inch output, Balanced XLR DI output
• Power: 5VDC-1A, MicroUSB
• Transmitter Sleep Mode: Automatic, activated after 4 minutes without any audio input extends standby time up to 200hrs
• Controls: n/a
• System Latency: <2.9ms (RF2 mode)
• Antennas: Internal Antennas
• Frequency Response: 10Hz - 20kHz
• Dynamic Range: &mt;110dB
• RF Carrier Frequency: 2.4GHz
• Operating modes: RF2
• Compatible Channels: Up to 14
• Transmitter LED Display: Power, Status
• Transmitter. LCD Display: n/a
• Receiver. LED Displays: Connection Status, Transmitter Battery Life
• Receiver. LCD Displays: n/a
• Power Supply: Universal USB Power Supply (5V-1A) included
