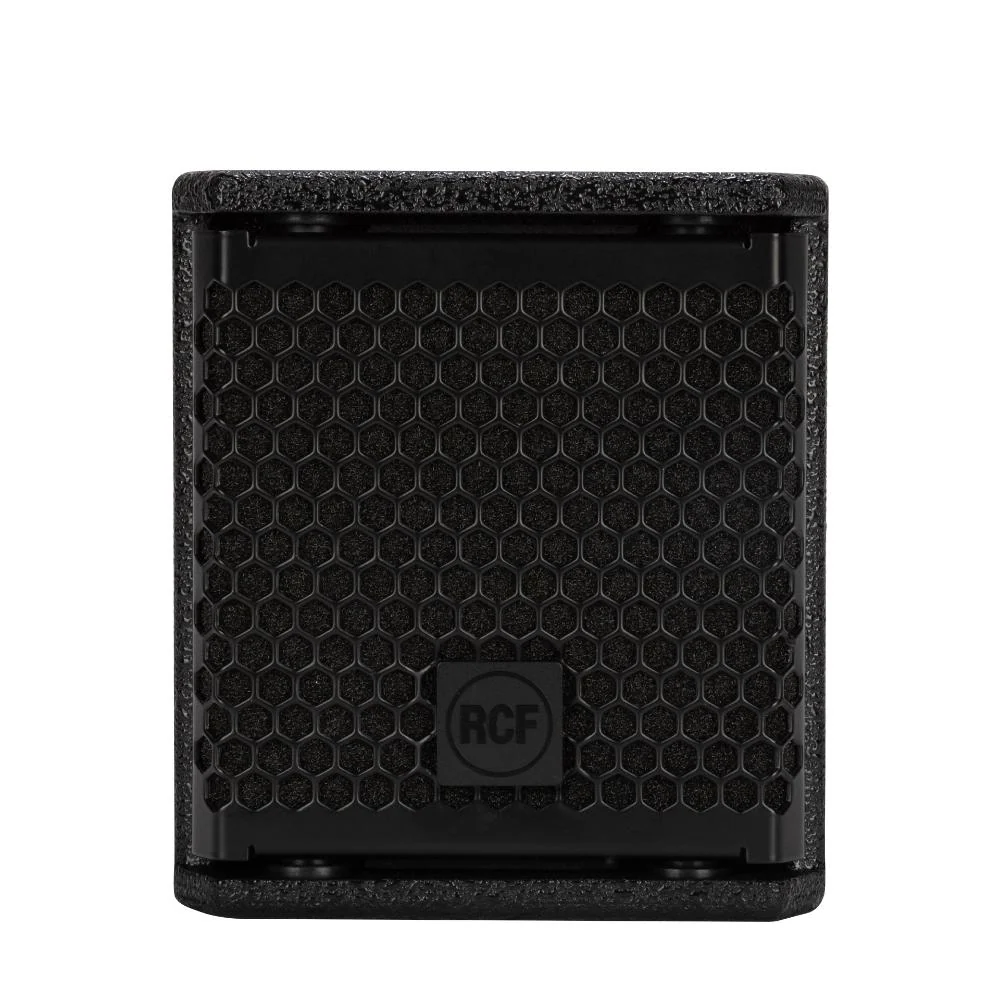

RCF Compact M 04 4 Passive Installation Speaker

Its balanced sound is a great advantage in near-field applications for maximum clarity. The M 04 is characterised by high sensitivity thanks to the use of extra-large magnets and high-fidelity sound quality thanks to a smooth and wide frequency response. The sound pressure levels of low-distortion audio that the M 04 can deliver far exceed expectations for such a compact solution. Its elegant and compact design with precise finishes makes the M 04 suitable for almost any environment, even where there are architectural restrictions. The included wall bracket allows you to mount the M 04 on a wall or ceiling.

Features

• 60W RMS power handling
• 113 dB max SPL
• 90 ÷ 20000 Hz frequency range
• 120° x 120° constant directivity coverage angle
• 1 x 4" coax woofer
• 1 x 1" voice coil neodymium dome tweeter
• High quality plywood cabinet
• Wall mount bracket included

Specifications

Acoustical Specifications Frequency Response (-10dB): 90 Hz ÷ 20000 Hz Max SPL @ 1m: 113 dB Horizontal coverage angle: 120° Vertical coverage angle: 120° Directivity index Q: 6 System Sensitivity: 89 dB Power Section Amplification: Full Range Nominal Impedance: 16 ohm Power Handling: 60 W Peak Power Handling: 240 W PEAK Crossover Frequencies: 1800 Hz Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, DMA 82 Transducers Dome Tweeter: 1 x 1.0'' neo, 1.0'' v.c Woofer: 1 x 4.0'', 1.0'' v.c Input/Ouput Section Input connectors: Euroblock Output connectors: Euroblock Standard Compliance Safety agency: CE compliant Physical Specifications Hardware: 2 x M6, 2 x M8 Color: Black - RAL 9005, White - RAL 9003 Product Size Height: 148 mm / 5.83 inches Width: 132 mm / 5.2 inches Depth: 145 mm / 5.71 inches Weight: 2.3 kg / 5.07 lbs
