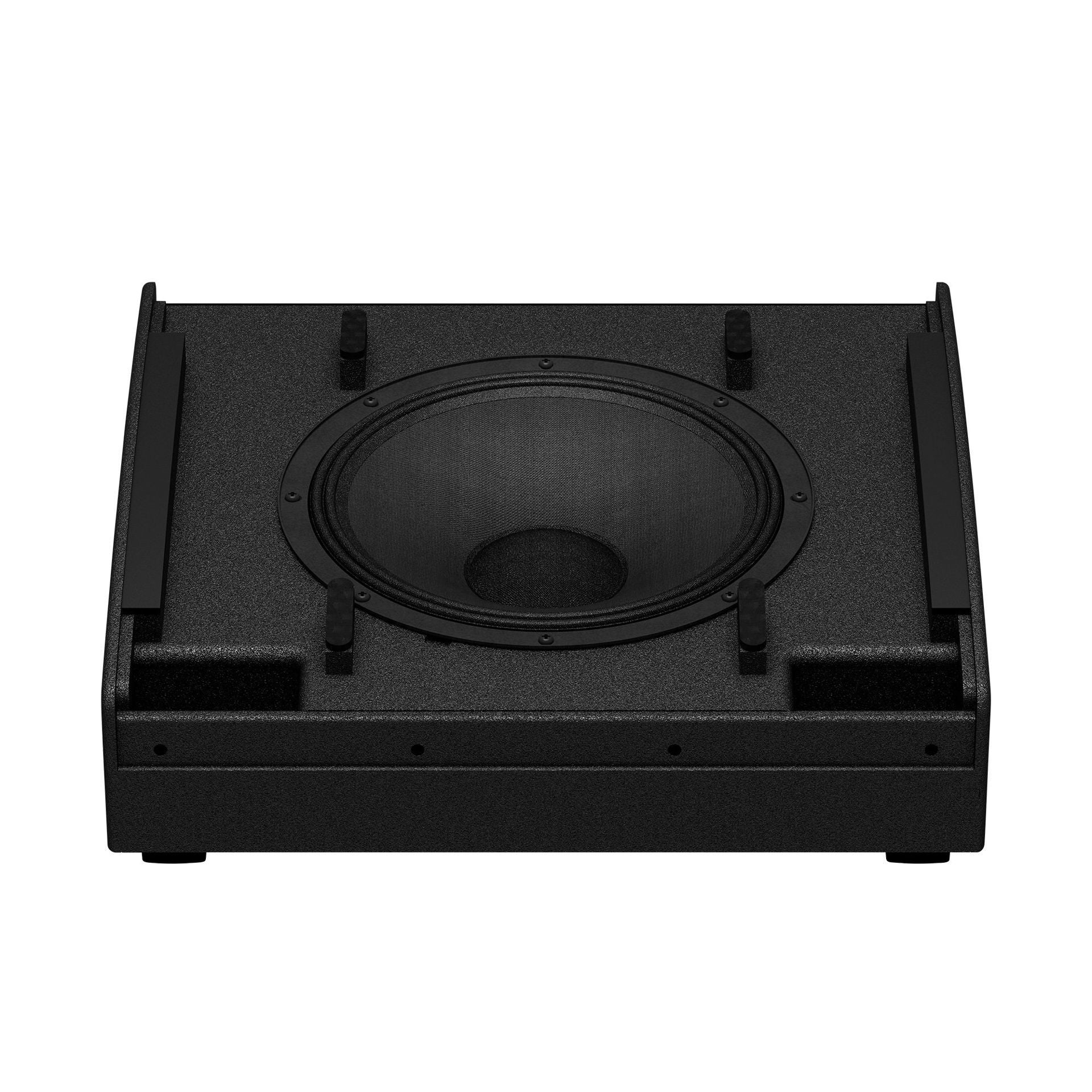

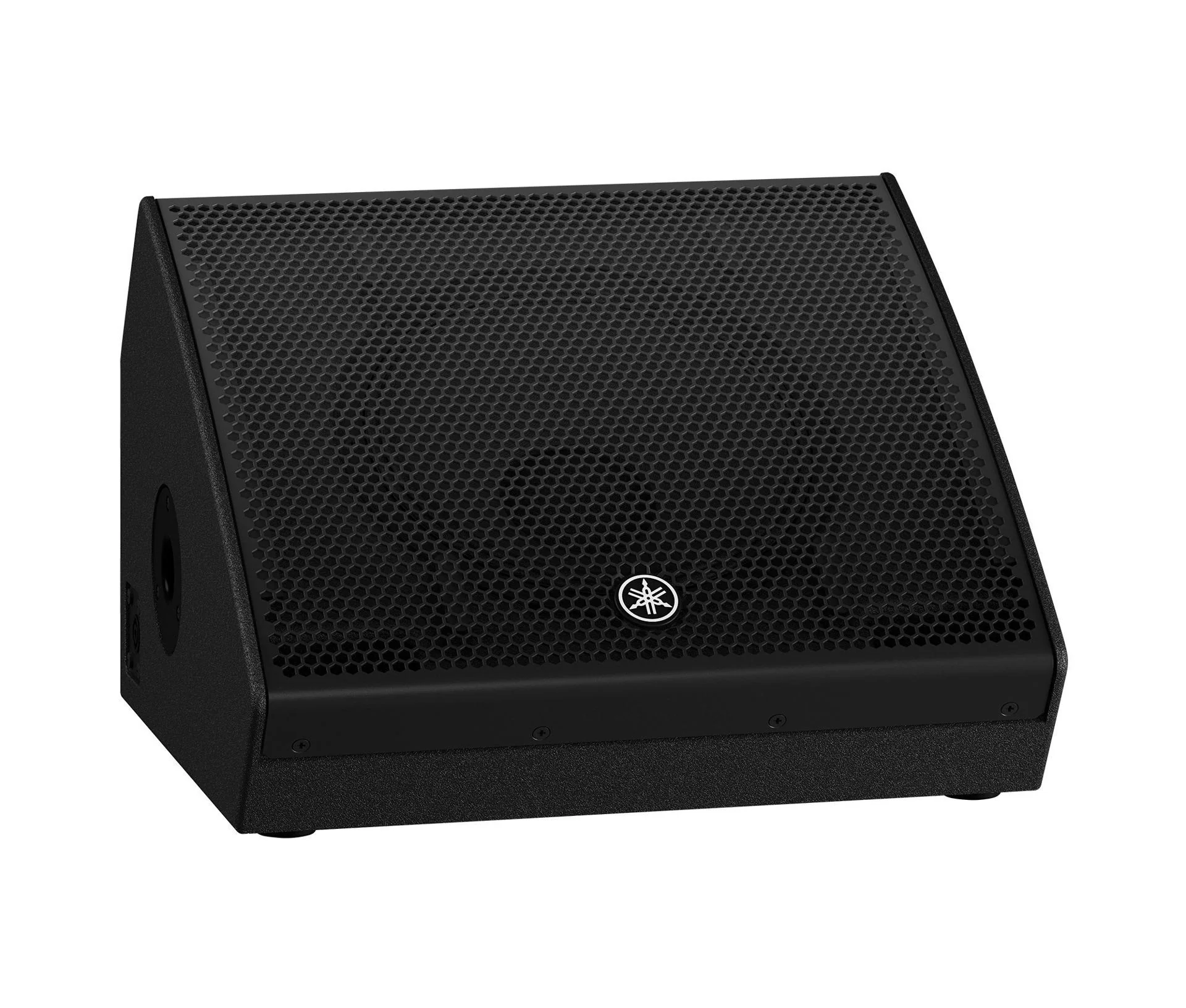

Yamaha CHR12M Passive Loudspeaker
Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.
Features
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Specifications
- Speaker type: 2-way Speaker, Bass-reflex
- Frequency range (-10dB): 61 Hz - 20 kHz
- Coverage area: H90ﾟ x V90ﾟ
- Crossover: 1.8 kHz
- Nominal impedance: 8 Ω
- Sensitivity (1W; 1m on axis): 93 dB SPL
- Peak (Calculated): 123 dB SPL
- Components LF: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
- Components HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
- NOISE: 250 W
- PGM: 500 W
- PEAK: 1,000 W
- I/O connectors: SpeakON NL4MP x 2 (Parallel)
- Cabinet material: Plywood
- Finish: Durable Polyurea Painting, Black
- Handle: Side x1
- Pole socket: Φ35 mm x1 (Bottom)
- Floor Monitor Angle: 57°
- Dimensions WxHxD: 500 mm (19.7") x 343 mm (13.5") (with rubber feet) x 454 mm (17.9")
- Net Weight: 15.6 kg (34.4 lbs)
Watch: Yamaha Powered Loudspeaker "DHR Series" and Loudspeaker "CHR Series"
