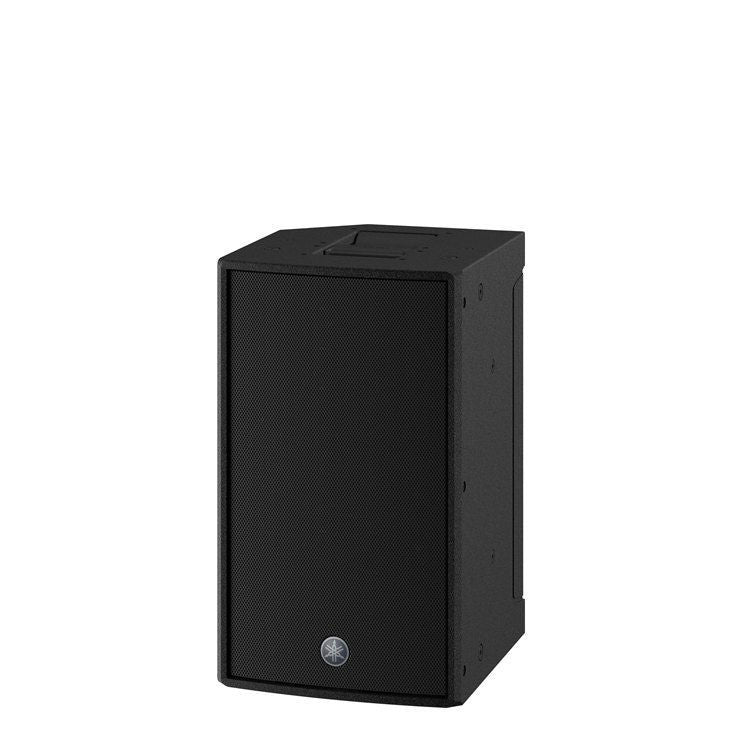

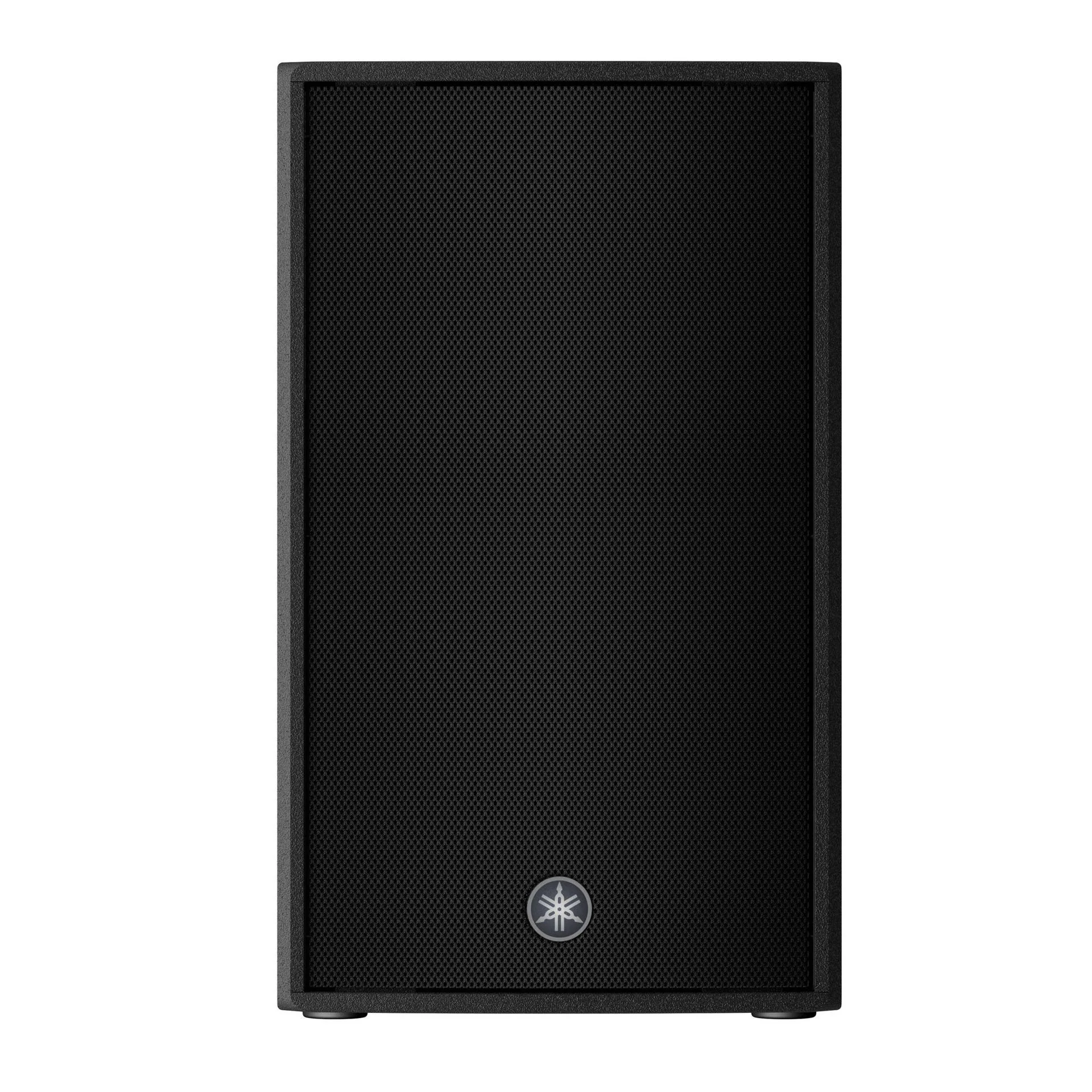

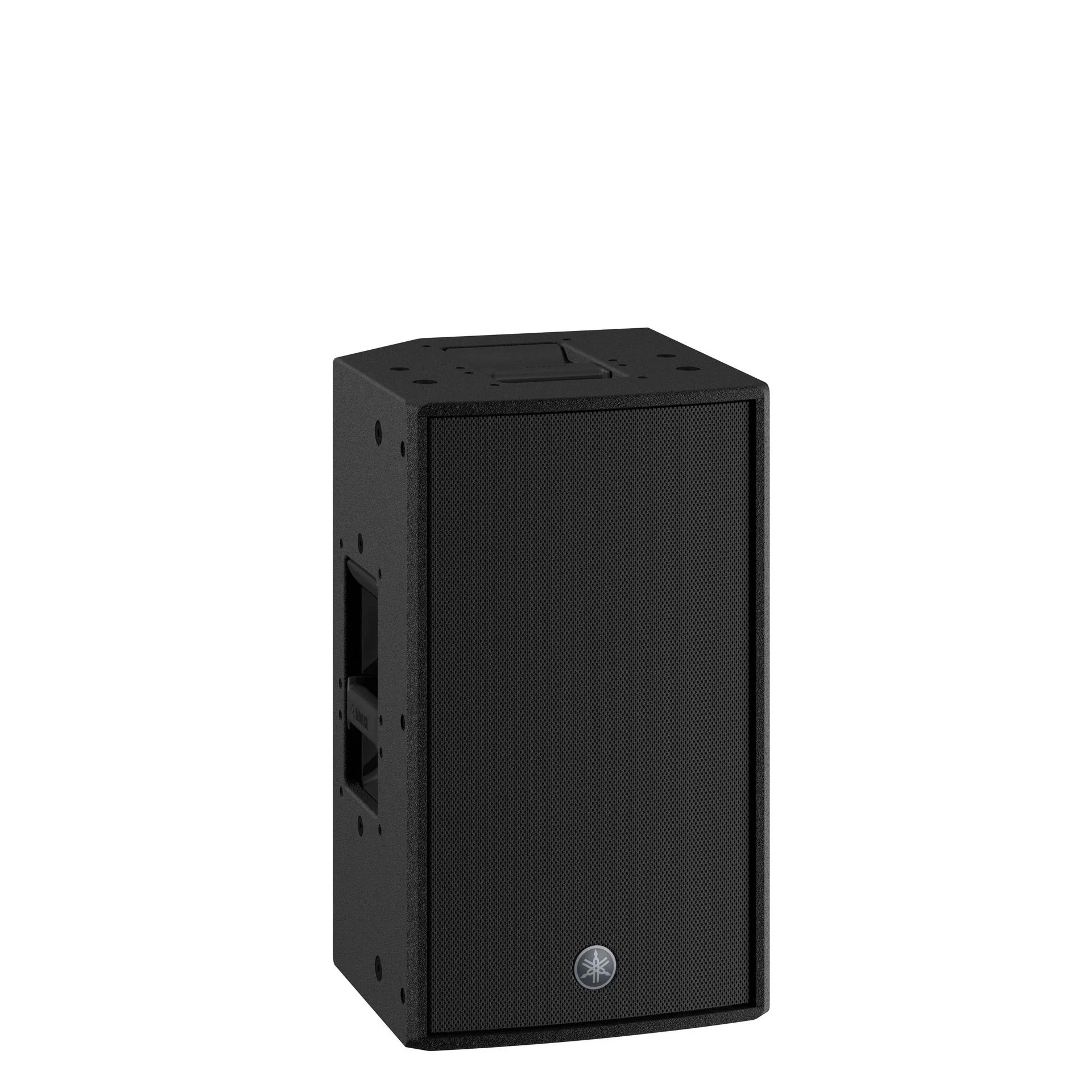

Yamaha CZR 10 Passive Speaker

---

Features

• 2-way loudspeaker with a 2” HF and a 10" LF
• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 700W(PGM) power handling and Bi-amp capable
• Floor monitoring setting
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR10)
• Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement
• Durable Black or white finish

---

Specifications

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB):
• Passive: 43 Hz - 20 kHz
• Normal (*1): 46 Hz - 20 kHz
• FOH (*1): 43 Hz - 20 kHz
• Coverage area: H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn
• Floor Monitor Angle: 50°
• Components:

  • LF: 10" Cone, 3" Voice Coil, Neodymium magnet
  • HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 2.5 kHz
• Power rating:

  • NOISE: Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W
  • PGM: Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
  • PEAK: Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W
• Nominal impedance: Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
• SPL:

  • Sensitivity (1W; 1m on axis): Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL
  • Peak (Calculated): Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL
• I/O connectors: SpeakON NL4MP x 2 (Parallel)
• Handle: Aluminium die-cast, Top x1, Side x1
• Pole socket: Φ35 mm x2 (0° or -7°)
• Rigging: M10 x 8, M8 x 2
• Dimensions:

  • Width: 315 mm (12.4")
  • Height: 537 mm (21.1") (with rubber feet)
  • Depth: 345 mm (13.6")
• Net weight: 14.0 kg (30.9 lbs)
• Options: Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
• Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White

---
